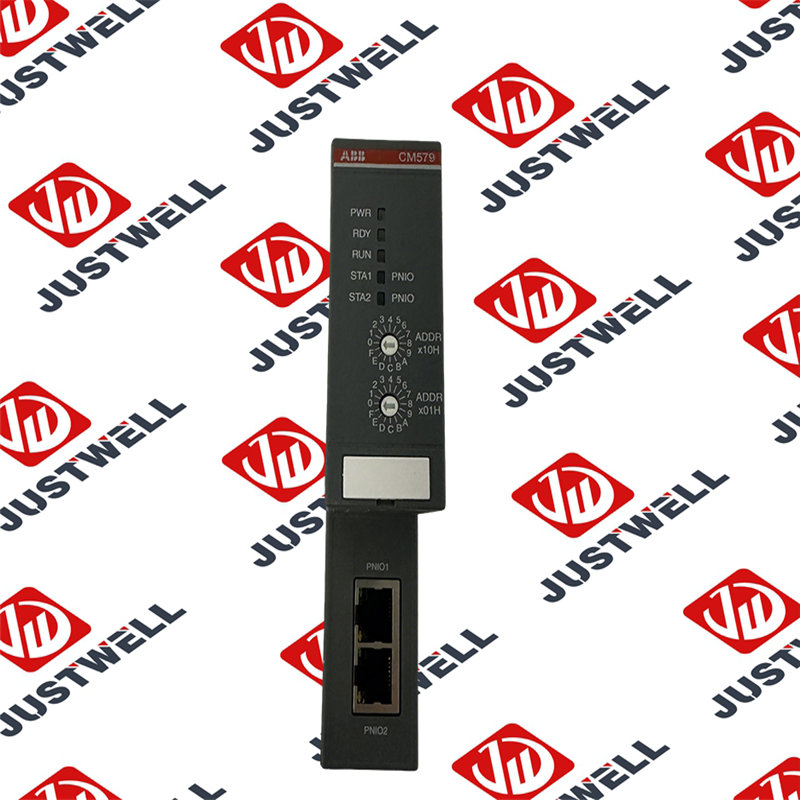

Description CM579-PNIO 1SAP170901R0101 ABB PROFINET IO Communication Module Product Dimensions： Product Description (Detailed Explanation) The CM579-PNIO serves as a specialized gateway that plugs into the communication slots of an AC500 CPU terminal base. It allows the AC500 system to integrate seamlessly into PROFINET networks, which is the leading Ethernet-based standard for industrial automation. This module handles the entire PROFINET protocol stack independently of the main PLC CPU, ensuring that high-speed network traffic does not burden the control logic execution. It supports real-time (RT) communication and is capable of managing up to 128 PROFINET IO devices, making it suitable for large-scale distributed automation architectures. Product Parameters (Technical Specifications) Parameter Category Specification Protocol PROFINET IO RT (Real-Time) Transmission Rate 100 Mbit/s (Full Duplex) Interface 1 x RJ45 Port Max. Number of Devices Up to 128 IO Devices Data Volume Max. 1440 bytes input / 1440 bytes output Update Time Min. 1 ms (Depending on the number of devices) Internal Power Supply Via the Terminal Base (Coupler Bus) Current Consumption Approx. 315 mA from 24V DC Diagnostic LEDs PWR, RUN, ERR, LNK/ACT (Status Indication) Operating OS Required firmware compatibility with AC500 CPU Product Advantages (Key Benefits) Independent Processing: Equipped with its own processor to manage network communication, maintaining fast PLC scan times even under heavy network loads. Scalability: Supports a massive number of downstream devices (up to 128), allowing for extensive factory-wide distribution of I/O. Standardized Integration: Uses GSDML files for easy configuration in ABB Automation Builder, ensuring quick setup of third-party devices like sensors and frequency converters. Easy Maintenance: Features comprehensive onboard LED diagnostics and software-based monitoring to quickly identify cable breaks or device failures. Hot-Plug Support: Designed for modular systems where adding or replacing communication modules can be done with minimal system disruption (depending on the terminal base). Precautions (Important Notes) Terminal Base Requirement: This module must be plugged into a communication slot on a compatible AC500 terminal base (e.g., TB511, TB521, or TB541). It cannot function as a standalone unit. Firmware Version: Ensure that the AC500 CPU firmware version is compatible with the CM579-PNIO hardware revision to avoid boot errors or communication timeouts. Network Topology: When designing the PROFINET network, observe the maximum Ethernet cable length (100 meters per segment) and use industrial-grade shielded (STP) cables to prevent EMI. IP Addressing: Each CM579-PNIO and every connected IO device must have a unique IP address and a unique “PROFINET Station Name” assigned via the configuration software. Slot Placement: Always power down the system before inserting or removing the module from the terminal base to prevent electrical arcing or damage to the coupler bus. Product Applications (Typical Use Cases) Distributed Control Systems: Linking a central AC500 PLC to multiple remote I/O stations across a large manufacturing floor. Variable Speed Drive Integration: Controlling and monitoring a fleet of ABB ACS880 or ACS580 drives over a single PROFINET cable for precise speed and torque control. Automated Assembly Lines: Coordinating robots, vision systems, and conveyor belts that communicate via the PROFINET standard. Process Automation: Managing valves and flow meters in water treatment or food and beverage plants where high-speed data updates are required for PID loops. Material Handling: Connecting high-speed sorting systems and AS/RS (Automated Storage and Retrieval Systems) to the main controller. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ABB 07DC92 GJR5252200R0101 ABB 5STP2665N0024 ABB 07KT98 GJR5253100R0270 ABB 5STP27H1800 ABB 07LE90 ABB 5STP27H2801 ABB 100-250V50/60HZ-D ABB 5STP2842L0024 ABB 100-250V50/60HZ-DC ABB 5STP28L4200 ABB 100-250V50/60HZ-DC ABB 5STP3328L0003 ABB 10332-00505 ABB 5STP3328L0005 ABB 10332-00655 ABB 5STP3328L0011 ABB 120M8-NT-6 ABB 5STP34H1601 ABB 19160/29160N ASC-29160N/DELL2 ABB 5STP38N4000 ABB 19160/29160N ASC-29160N/DELL2 ABB 5STP38N4200 ABB 1Q1SY-Cabled ABB 5STP4200 ABB 1SAP250300R0001 AI523 ABB 5STP45N2800 ABB 220V-230V50Hz ABB 5STP45Q2800 ABB 24-30Vac/dc ABB 70M6-NT-6 ABB 250Vac/dc ABB 95M8-NT-6 ABB 35M6-NT-6 ABB A110-30-11*110V 50Hz/110-120V ABB 38SC98000HR615 ABB A110-30-11*220-230V ABB 3ASD573001A1 YPP110A ABB A12-30-10*220-230V ABB 3ASD573001A13 ABB A145-30-11*110V ABB 3ASD573001A13 YPK112A ABB A145-30-11*220-230V ABB 3BHE024577R0101/PP C907 ABB A16-30-10*110V ABB 3BSC980004R784 ABB A16-30-10*220-230V ABB 3BSC980006R136 ABB A185-30-11*110V ABB 3BSE018135R1 CI858K01 ABB A210-30-11*110V ABB 3BSE020510R1 DO801 ABB A210-30-11*220-230V ABB 3BSE022362R1 DI803 ABB A260-30-11*110V ABB 3BSE022364R1 DO802 ABB A260-30-11*220-230V ABB 3BSE024388R4 PFXA401SF ABB A26-30-10*110V ABB 3GZF303135-3 ABB A26-30-10*220-230V ABB 50Hz/110-120V ABB A300-30-11*220-230V ABB 50Hz/230-240V ABB A30-30-10*220-230V ABB 50HZ/230-240V ABB A40-30-10*220-230V ABB 57310001-CC DSPC171 ABB A63-30-11*110V50/110-120V60HZ ABB 57310001-CC DSPC171 ABB A63-30-11*220V-230V50Hz/230-240V60Hz ABB 57310001-GP ABB A9-30-10*110V ABB 5SHY3545L0010 3BHB013088R0001 ABB A9-30-10*220-230V ABB 5STP 18H4200 ABB A9-40-00 ABB 5STP03D6500 ABB A95-30-11*220-230V 50Hz/230-240V ABB 5STP03X6500 ABB ACS150/310/355 ABB 5STP04D4200 ABB ACS510 ABB 5STP06D2800 ABB ACS550 ABB 5STP08F6500 ABB ACS580 ABB 5STP10D2303 ABB ACS880-01/04 ABB 5STP12F4200 ABB ACS880-07 ABB 5STP16F2200 ABB AF1250-30-11*100-250V ABB 5STP16F2800 ABB AF145-30-11*100-250V ABB 5STP16F2801 ABB AF185-30-11*100-250V ABB 5STP18F1800 ABB AF260-30-11*100-250V ABB 5STP18F1801 ABB AF265-30-11-13
